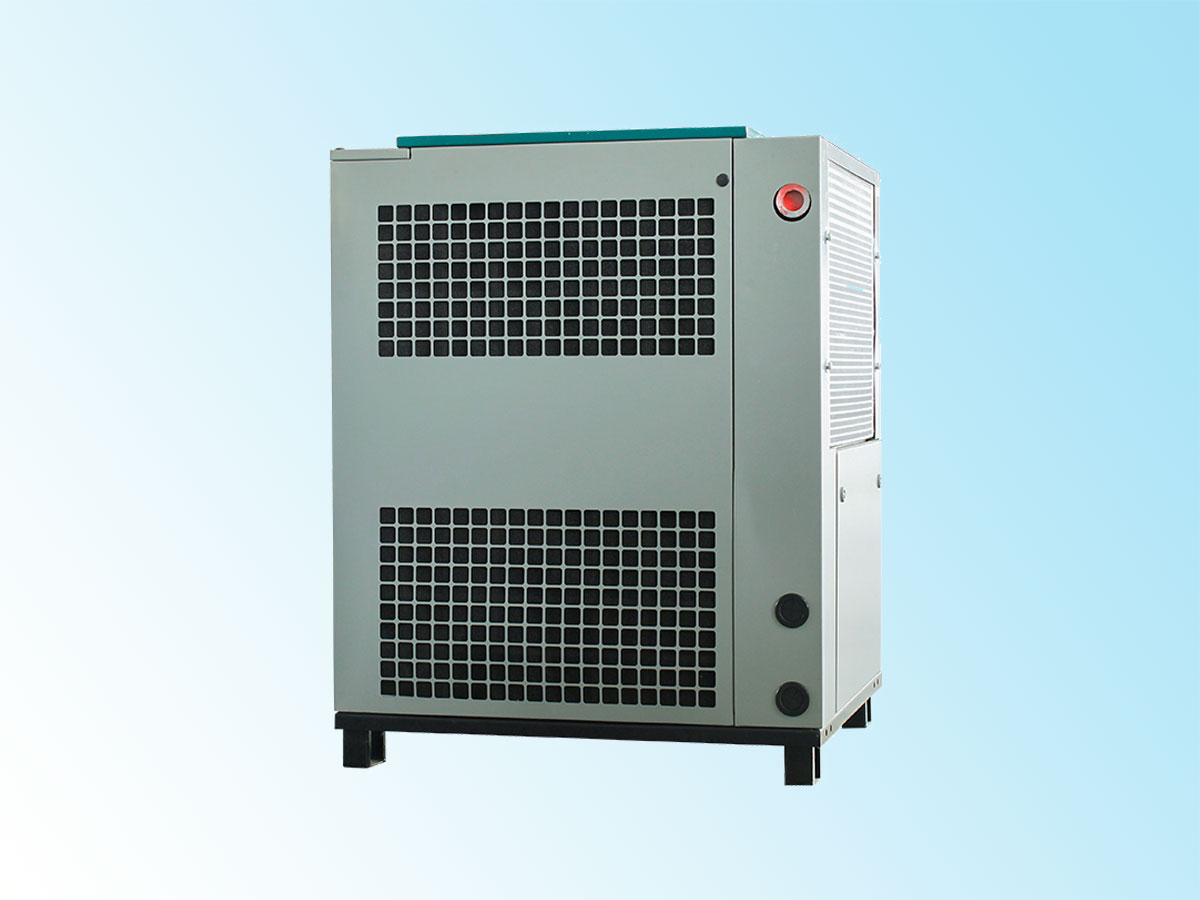

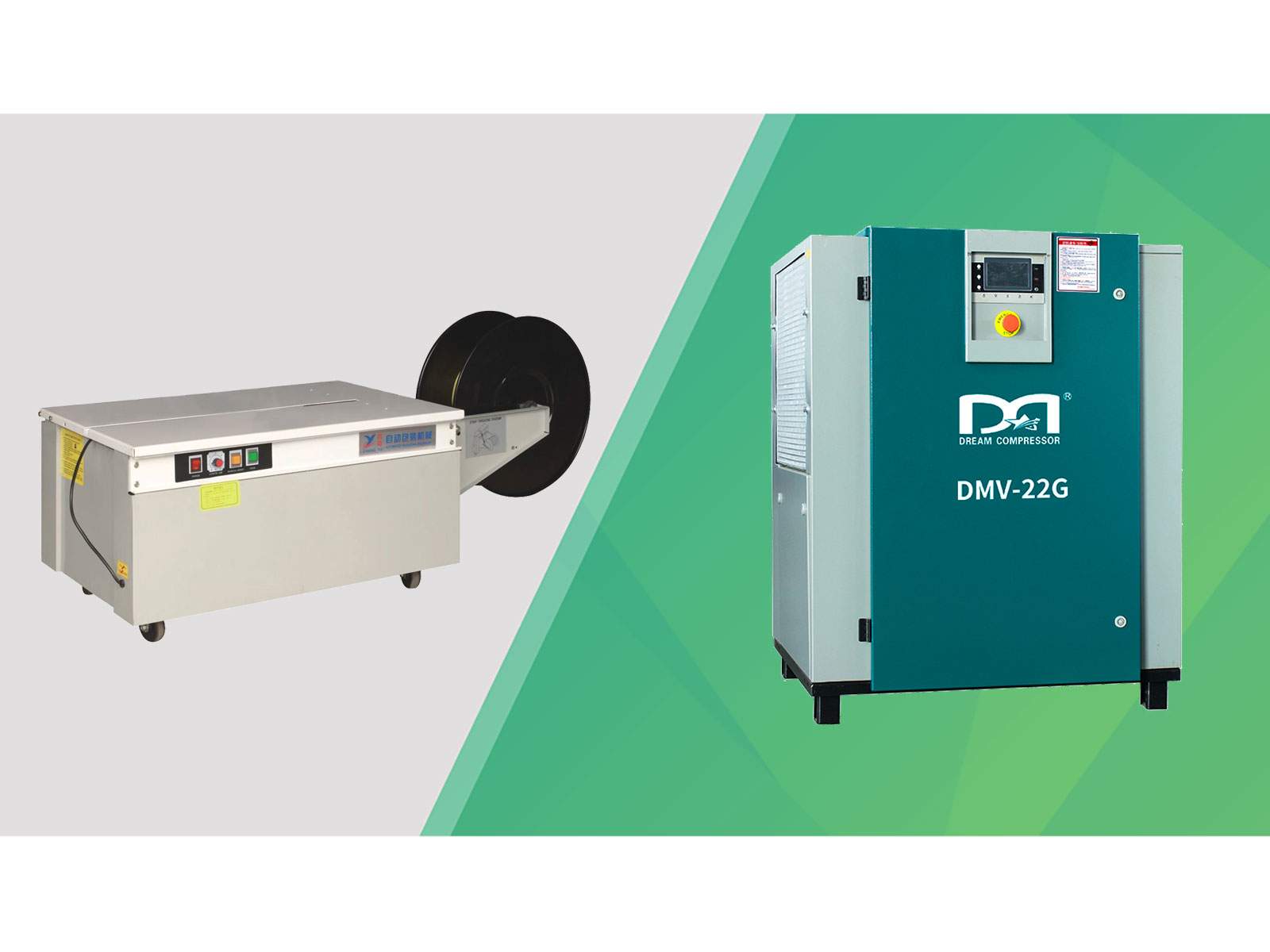

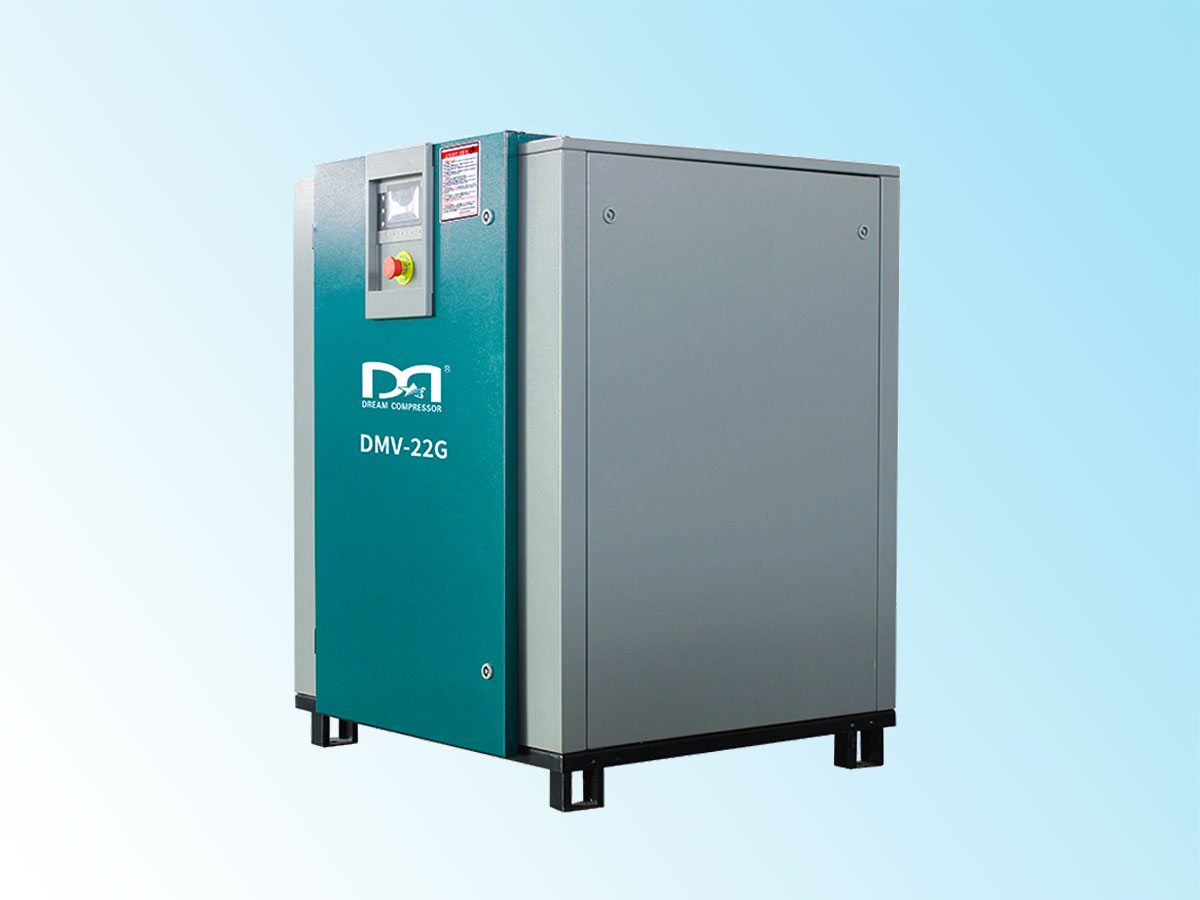

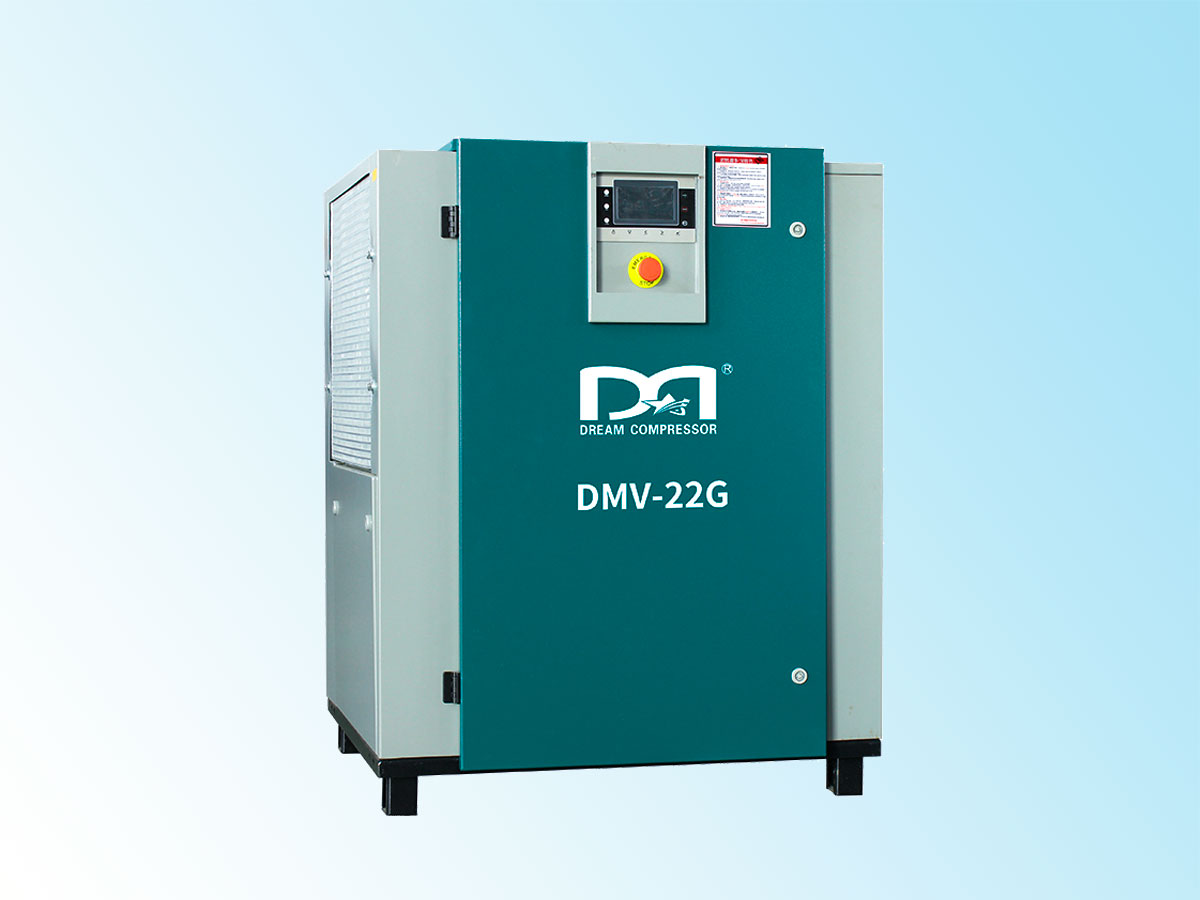

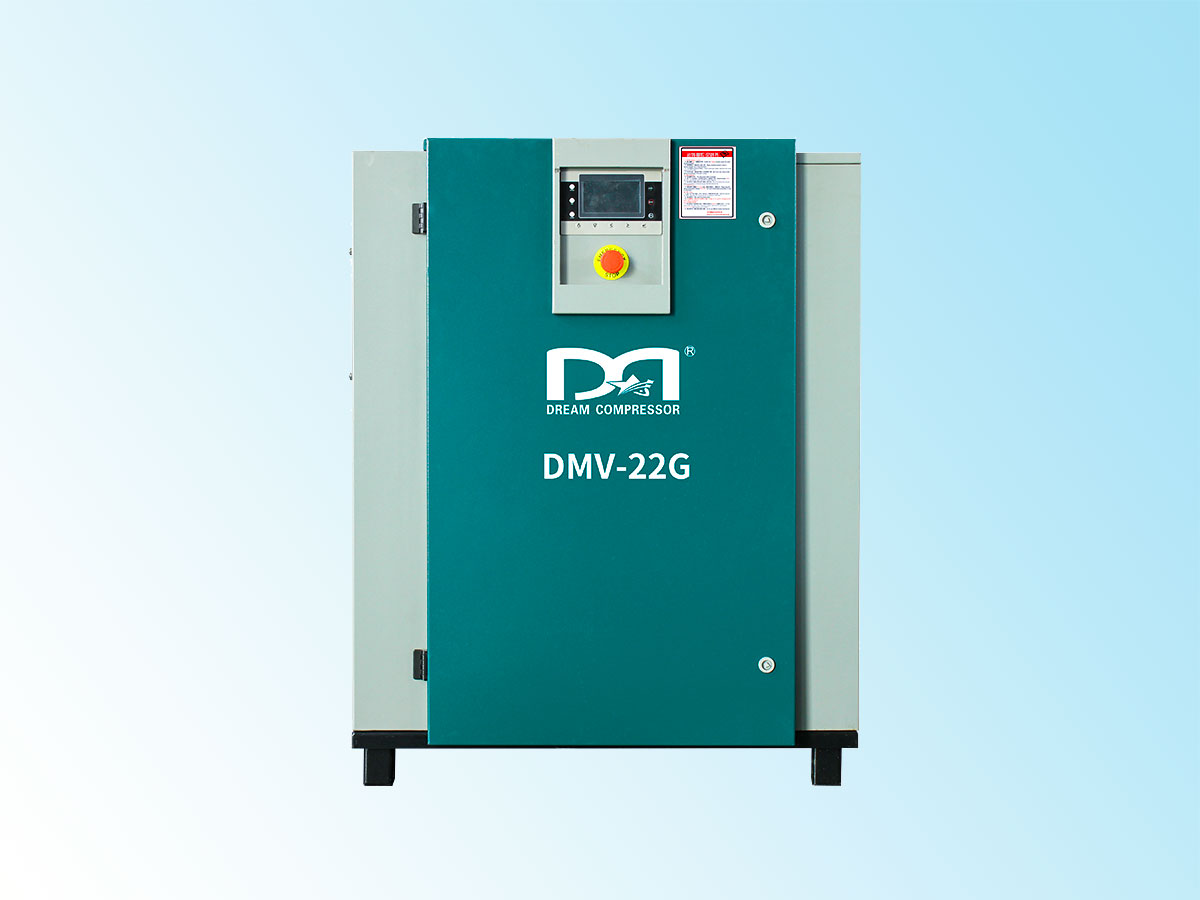

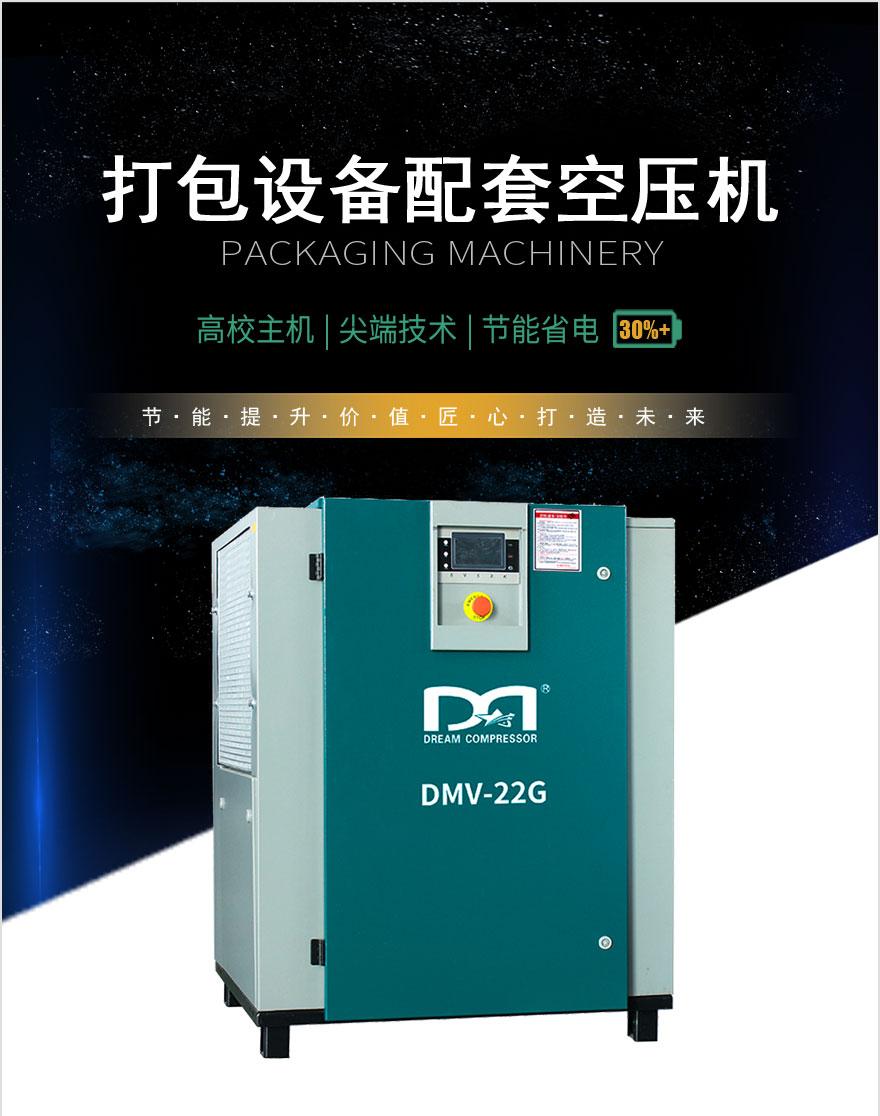

产品名称：打包设备配套——单级压缩空压机
型号： 【DMV永磁变频系列】
品牌： 德蒙
功率：7~250 KW
排气量：1.2-45.5 m3/min
排气压力：0.8~1.6Mpa

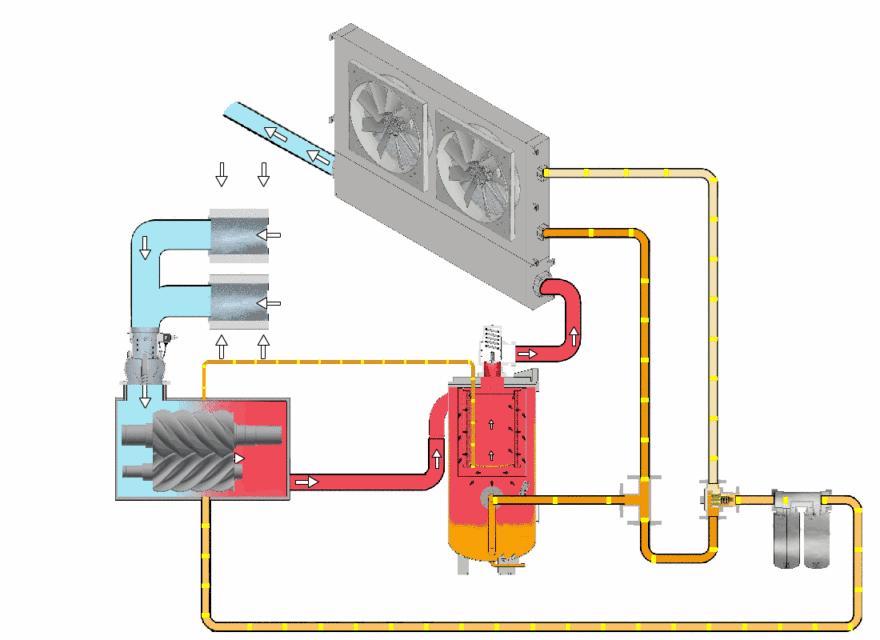

工作原理：
技术参数：
德蒙DMV-G系列单级压缩螺空压机参数
| DMV-G系列 | 排气压力(Mpa) | 排气量(m3/min) | 功率(kW) | 噪音(dBA) | 出口管径(inch) | 风冷机组净重(kg) | 风冷外观尺寸长宽高(mm) | 水冷机组净重(kg) | 水冷外观尺寸长宽高(mm) |
| DMV-7G | 0.8 | 0.37-1.2 | 7.5 | 60±3 | G3/4" | 225 | 700 * 690 * 933 | / | / |
| DMV-7G | 1.0 | 0.31-1.0 | 7.5 | 60±3 | G3/4" | 225 | 700 * 690 * 933 | / | / |
| DMV-7G | 1.3 | 0.2-0.79 | 7.5 | 60±3 | G3/4" | 225 | 700 * 690 * 933 | / | / |
| DMV-7G | 1.6 | 0.06-0.52 | 7.5 | 60±3 | G3/4" | 225 | 700 * 690 * 933 | / | / |
| DMV-11G | 0.8 | 0.72-1.9 | 11 | 62±3 | G3/4" | 245 | 700 * 690 * 933 | / | / |
| DMV-11G | 1.0 | 0.61-1.6 | 11 | 62±3 | G3/4" | 245 | 700 * 690 * 933 | / | / |
| DMV-11G | 1.3 | 0.35-1.1 | 11 | 62±3 | G3/4" | 245 | 700 * 690 * 933 | / | / |
| DMV-11G | 1.6 | 0.26-0.9 | 11 | 62±3 | G3/4" | 245 | 700 * 690 * 933 | / | / |
| DMV-15G | 0.8 | 1.0-2.4 | 15 | 62±3 | G3/4" | 280 | 880 * 820 * 1123 | / | / |
| DMV-15G | 1.0 | 0.87-2.1 | 15 | 62±3 | G3/4" | 280 | 880 * 820 * 1123 | / | / |
| DMV-15G | 1.3 | 0.71-1.8 | 15 | 62±3 | G3/4" | 280 | 880 * 820 * 1123 | / | / |
| DMV-15G | 1.6 | 0.65-1.6 | 15 | 62±3 | G3/4" | 280 | 880 * 820 * 1123 | / | / |
| DMV-22G | 0.8 | 1.8-3.8 | 22 | 64±3 | G11/4" | 375 | 880 * 820 * 1123 | / | / |
| DMV-22G | 1.0 | 1.6-3.2 | 22 | 64±3 | G11/4" | 375 | 880 * 820 * 1123 | / | / |
| DMV-22G | 1.3 | 1.3-2.5 | 22 | 64±3 | G11/4" | 375 | 880 * 820 * 1123 | / | / |
| DMV-22G | 1.6 | 0.98-2.4 | 22 | 64±3 | G11/4" | 375 | 880 * 820 * 1123 | / | / |
| DMV-22G | 0.8 | 2.5-5.6 | 30 | 64±3 | G11/4" | 730 | 1475 * 1060 * 1330 | / | / |
| DMV-22G | 1.0 | 2.1-4.6 | 30 | 64±3 | G11/4" | 730 | 1450 * 1060 * 1330 | / | / |
| DMV-22G | 1.3 | 1.9-4.1 | 30 | 64±3 | G11/4" | 730 | 1475 * 1060 * 1330 | / | / |
| DMV-22G | 1.6 | / | 30 | 64±3 | G11/4" | 730 | 1475 * 1060 * 1330 | / | / |
| DMV-37G | 0.8 | 3.4-7.0 | 37 | 64±3 | G11/4" | 760 | 1475 * 1060 * 1330 | / | / |
| DMV-37G | 1.0 | 2.9-6.1 | 37 | 64±3 | G11/4" | 7600 | 1475 * 1060 * 1330 | / | / |
| DMV-37G | 1.3 | 2.3-5.2 | 37 | 64±3 | G11/4" | 760 | 1475 * 1060 * 1330 | / | / |
| DMV-37G | 1.6 | / | 37 | 64±3 | G11/4" | 760 | 1475 * 1060 * 1330 | / | / |
| DMV-45G | 0.8 | 4.1-8.6 | 45 | 66±3 | G11/2" | 1150 | 1700 * 1250 * 1400 | / | / |
| DMV-45G | 1.0 | 3.6-7.6 | 45 | 66±3 | G11/2" | 1150 | 1700 * 1250 * 1400 | / | / |
| DMV-45G | 1.3 | 3.1-6.6 | 45 | 66±3 | G11/2" | 1150 | 1700 * 1250 * 1400 | / | / |
| DMV-45G | 1.6 | / | 45 | 66±3 | G11/2" | 1150 | 1700 * 1250 * 1400 | / | / |
| DMV-55G | 0.8 | 5.1-10.5 | 55 | 65±3 | G11/2" | 1250 | 1700 * 1250 * 1400 | / | / |
| DMV-55G | 1.0 | 4.4-9.2 | 55 | 65±3 | G11/2" | 1250 | 1700 * 1250 * 1400 | / | / |
| DMV-55G | 1.3 | 3.7-7.8 | 55 | 65±3 | G11/2" | 1250 | 1700 * 1250 * 1400 | / | / |
| DMV-55G | 1.6 | / | 55 | 65±3 | G11/2" | 1250 | 1700 * 1250 * 1400 | / | / |
| DMV-75G | 0.8 | 7.0-14.4 | 75 | 74±3 | DN50 | 1800 | 2160 * 1410 * 1520 | 1850 | 2160 * 1410 * 1420 |
| DMV-75G | 1.0 | 6.2-12.7 | 75 | 74±3 | DN50 | 1800 | 2160 * 1410 * 1520 | 1850 | 2160 * 1410 * 1420 |
| DMV-75G | 1.3 | 5.2-10.7 | 75 | 74±3 | DN50 | 1800 | 2160 * 1410 * 1520 | 1850 | 2160 * 1410 * 1420 |
| DMV-75G | 1.6 | / | 75 | 74±3 | DN50 | 1800 | 2160 * 1410 * 1520 | 1850 | 2160 * 1410 * 1420 |
| DMV-90G | 0.8 | 9.9-16.8 | 90 | 78±3 | DN50 | 2000 | 2160 * 1410 * 1520 | 2050 | 2160 * 1410 * 1420 |
| DMV-90G | 1.0 | 8.9-15.2 | 90 | 78±3 | DN50 | 2000 | 2160 * 1410 * 1520 | 2050 | 2160 * 1410 * 1420 |
| DMV-90G | 1.3 | 7.9-13.4 | 90 | 78±3 | DN50 | 2000 | 2160 * 1410 * 1520 | 2050 | 2160 * 1410 * 1420 |
| DMV-90G | 1.6 | / | 90 | 78±3 | DN50 | 2000 | 2160 * 1410 * 1520 | 2050 | 2160 * 1410 * 1420 |
| DMV-110G | 0.8 | 13.0-21.9 | 110 | 78±3 | DN80 | 2400 | 2260 * 1660 * 1700 | 2450 | 2260 * 1660 * 1600 |
| DMV-110G | 1.0 | 10.8-18.3 | 110 | 78±3 | DN80 | 2400 | 2260 * 1660 * 1700 | 2450 | 2260 * 1660 * 1600 |
| DMV-110G | 1.3 | 9.2-15.6 | 110 | 78±3 | DN80 | 2260 | 1660 * 1700 * 2450 | 2450 | 2260 * 1660 * 1600 |
| DMV-110G | 1.6 | / | 110 | 78±3 | DN80 | 2400 | 2260 * 1660 * 1700 | 2450 | 2260 * 1660 * 1600 |
| DMV-132G | 0.8 | 14.3-24.0 | 132 | 80±3 | DN80 | 2900 | 2260 * 1660 * 1700 | 2950 | 2260 * 1660 * 1600 |
| DMV-132G | 1.0 | 13.6-23.1 | 132 | 80±3 | DN80 | 2900 | 2260 * 1660 * 1700 | 2950 | 2260 * 1660 * 1600 |
| DMV-132G | 1.3 | 11.8-19.9 | 132 | 80±3 | DN80 | 2900 | 2260 * 1660 * 1700 | 2950 | 2260 * 1660 * 1600 |
| DMV-132G | 1.6 | / | 132 | 80±3 | DN80 | 2900 | 2260 * 1660 * 1700 | 2950 | 2260 * 1660 * 1600 |
| DMV-160G | 0.8 | 17.5-29.5 | 160 | 80±3 | DN80 | 3400 | 2735 * 1680 * 1800 | 3450 | 2735 * 1680 * 1600 |
| DMV-160G | 1.0 | 15.7-26.5 | 160 | 80±3 | DN80 | 3400 | 2735 * 1680 * 1800 | 3450 | 2735 * 1680 * 1600 |
| DMV-160G | 1.3 | 13.7-23.1 | 160 | 80±3 | DN80 | 3400 | 2735 * 1680 * 1800 | 3450 | 2735 * 1680 * 1600 |
| DMV-160G | 1.6 | / | 160 | 80±3 | DN80 | 3400 | 2735 * 1680 * 1800 | 3450 | 2735 * 1680 * 1600 |
| DMV-185G | 0.8 | 20.6-32.1 | 185 | 80±3 | DN80 | 4200 | 2735 * 1680 * 1800 | 4300 | 2735 * 1680 * 1600 |
| DMV-185G | 1.0 | 18.8-29.8 | 185 | 80±3 | DN80 | 4200 | 2735 * 1680 * 1800 | 4300 | 2735 * 1680 * 1600 |
| DMV-185G | 1.3 | 15.8-26.6 | 185 | 80±3 | DN80 | 4200 | 2735 * 1680 * 1800 | 4300 | 2735 * 1680 * 1600 |
| DMV-185G | 1.6 | / | 185 | 80±3 | DN80 | 4200 | 2735 * 1680 * 1800 | 4300 | 2735 * 1680 * 1600 |
| DMV-200G | 0.8 | 19.7-35.3 | 200 | 80±3 | DN100 | 4600 | 3000 * 1740 * 2100 | 4700 | 3000 * 1740 * 2100 |
| DMV-200G | 1.0 | 19.4-32.1 | 200 | 80±3 | DN100 | 4600 | 3000 * 1740 * 2100 | 4700 | 3000 * 1740 * 2100 |
| DMV-200G | 1.3 | 16.6-28.0 | 200 | 80±3 | DN100 | 4600 | 3000 * 1740 * 2100 | 4700 | 3000 * 1740 * 2100 |
| DMV-200G | 1.6 | / | 200 | 80±3 | DN100 | 4600 | 3000 * 1740 * 2100 | 4700 | 3000 * 1740 * 2100 |
| DMV-250G | 0.8 | 27.1-45.5 | 250 | 80±3 | DN100 | 4900 | 3000 * 1740 * 2100 | 5000 | 3000 * 1740 * 2100 |
| DMV-250G | 1.0 | 25.2-42.4 | 250 | 80±3 | DN100 | 4900 | 3000 * 1740 * 2100 | 5000 | 3000 * 1740 * 2100 |
| DMV-250G | 1.3 | 20.8-35.1 | 250 | 80±3 | DN100 | 4900 | 3000 * 1740 * 2100 | 5000 | 3000 * 1740 * 2100 |
| DMV-250G | 1.6 | / | 250 | 80±3 | DN100 | 4900 | 3000 * 1740 * 2100 | 5000 | 3000 * 1740 * 2100 |
